Introduction
Welcome back to the Introduction to MQL5 series! You'll discover that this article will build directly on the ideas and techniques we've already discussed in previous articles. Since we'll be using a lot of what we've learned so far, this part will actually seem more like a continuation than a new beginning. By now, you should have a solid understanding of the MQL5 basics, and in this article, we’ll take things a step further by combining that knowledge to develop more interesting custom indicator.
You're only as good as the projects you've worked on in MQL5, which is why this series always takes a project-based approach. It's the most useful method for learning and developing yourself. We'll be creating an indicator in this part of the series that can recognize trends, use break of structure, and generate buy and sell signals. The entry point, stop loss, and several take profit levels are all included in these signals, providing you with a comprehensive strategy that you can test and build on. In this piece, you will learn how to design custom indicators in MQL5 using price action concepts. To create a trend-following strategy, you will learn how to recognize important market structures such as higher highs, higher lows, and lower highs, lower lows.
In this article, you'll learn:
- How to create price action indicator.
- Recognizing important points such as low (L), high (H), higher low (HL), higher high (HH), lower low (LL), and lower high (LH) to comprehend the structure of a bullish and bearish trend.
- Drawing the premium and discount zone based on key trend points, and marking the 50% retracement level.
- How to apply risk-reward ratio when calculating potential profit targets in a bullish trend setup.
- Calculating and marking the entry point, stop loss (SL), and multiple take profit (TP) levels based on the trend structure.
1. Setting up the Project
1.1. How the Indicator Works
The indicator will identify a low, high, higher low, and higher high to indicate an uptrend for buy signals. The 50% retracement level between the higher low and higher high will then be determined. A break in the structure above the higher high will initiate the entry, and the 50% retracement level will serve as the stop loss. A 1:1 risk-reward ratio will be the goal of Take Profit 1, and a 1:2 ratio will be the goal of Take Profit 2.
To identify a downtrend for sell signals, the indicator will first identify a high, low, lower high, and lower low. It will then compute the 50% retracement between the lower high and lower low. TP1 will be 1:1, TP2 will be 1:2, the stop loss will be at the 50% level, and the entry will take place on a break below the lower low.
2. Building Price Action Indicator
Every trading strategy can be transformed into an indicator — it just hasn’t been visualized yet. Anything that fits with a set of guidelines can be coded and shown on the chart, whether it be supply and demand, price action, or support and resistance. This is where MQL5 comes in. For algorithmic traders, it is among the greatest and most straightforward programming languages, enabling you to transform any trading logic into a useful and visually appealing tool. We'll start developing an indicator in this section that analyzes price movement, recognizing market structure such as highs, lows, higher highs, and lower lows, and then utilizes that data to produce insightful buy and sell signals that include entry, stop loss, and take profit levels.
In Chapter One, I outlined the project's purpose and how the indicator will spot trends, spot structural breaks, and produce full trade signals that include entry, stop loss, and take profits. We will now start putting everything in MQL5 into practice in this chapter. We'll take the logic we discussed and begin, step by step, to implement it in code.
2.1. Identifying Highs and Lows
Finding swing highs and lows is the first stage in creating our price action indicator. These significant market turning moments aid in identifying the trend's structure. By comparing the high or low of the current candle with that of the preceding and subsequent candles, we can identify them in MQL5. The detection of higher highs, higher lows, lower highs, and lower lows — all crucial for identifying patterns and structural breaks — will be based on this.
Examples://+------------------------------------------------------------------+ //| FUNCTION FOR SWING LOWS | //+------------------------------------------------------------------+ bool IsSwingLow(const double &low[], int index, int lookback) { for(int i = 1; i <= lookback; i++) { if(low[index] > low[index - i] || low[index] > low[index + i]) return false; } return true; } //+------------------------------------------------------------------+ //| FUNCTION FOR SWING HIGHS | //+------------------------------------------------------------------+ bool IsSwingHigh(const double &high[], int index, int lookback) { for(int i = 1; i <= lookback; i++) { if(high[index] < high[index - i] || high[index] < high[index + i]) return false; } return true; }
The two functions were used in the previous article, and it helps to identify both swing highs and lows.
2.2. Bullish Trend
Using market structure, this indicator must first verify if there is an uptrend before indicating a buy signal. A low, a high, a higher low, and a higher high are the main price points that must be identified to accomplish this. This pattern denotes a bullish trend, meaning that buyers are in charge and that the market will probably keep rising. Following confirmation of this pattern, the indicator will get ready to produce a legitimate buy signal.
Example:
// CHART ID long chart_id = ChartID(); // Input parameters input int LookbackBars = 10; // Number of bars to look back/forward for swing points input int bars_check = 1000; // Number of bars to check for swing points input bool show_bullish = true; //Show Buy Signals // Variables for Bullish Market Structure double L; // Low: the starting low point in the up trend datetime L_time; // Time of the low string L_letter; // Label for the low point (e.g., "L") double H; // High: the first high after the low datetime H_time; // Time of the high string H_letter; // Label for the high point (e.g., "H") double HL; // Higher Low: the next low that is higher than the first low datetime HL_time; // Time of the higher low string HL_letter; // Label for the higher low point (e.g., "HL") double HH; // Higher High: the next high that is higher than the first high datetime HH_time; // Time of the higher high string HH_letter; // Label for the higher high point (e.g., "HH") //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int OnInit() { //--- indicator buffers mapping //--- return(INIT_SUCCEEDED); } //+------------------------------------------------------------------+ //| Expert deinitialization function | //+------------------------------------------------------------------+ void OnDeinit(const int reason) { ObjectsDeleteAll(chart_id); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime &time[], const double &open[], const double &high[], const double &low[], const double &close[], const long &tick_volume[], const long &volume[], const int &spread[]) { //--- if(show_bullish == true) // Check if the bullish trend is to be displayed { if(rates_total >= bars_check) // Ensure enough bars are available for analysis { // Loop through the price data starting from a certain point based on bars_check and LookbackBars for(int i = rates_total - bars_check; i < rates_total - LookbackBars; i++) { // Check if the current bar is a swing low if(IsSwingLow(low, i, LookbackBars)) { // Store the values for the swing low L = low[i]; L_time = time[i]; L_letter = StringFormat("Low%d", i); // Loop through further to find a swing high after the low for(int j = i; j < rates_total - LookbackBars; j++) { // Check if the current bar is a swing high and occurs after the identified swing low if(IsSwingHigh(high, j, LookbackBars) && time[j] > L_time) { // Store the values for the swing high H = high[j]; H_time = time[j]; H_letter = StringFormat("High%d", j); // Loop further to find a higher low after the swing high for(int k = j; k < rates_total - LookbackBars; k++) { // Check if the current bar is a swing low and occurs after the swing high if(IsSwingLow(low, k, LookbackBars) && time[k] > H_time) { // Store the values for the higher low HL = low[k]; HL_time = time[k]; HL_letter = StringFormat("Higher Low%d", j); // Loop further to find a higher high after the higher low for(int l = j ; l < rates_total - LookbackBars; l++) { // Check if the current bar is a swing high and occurs after the higher low if(IsSwingHigh(high, l, LookbackBars) && time[l] > HL_time) { // Store the values for the higher high HH = high[l]; HH_time = time[l]; HH_letter = StringFormat("Higher High%d", l); // Check if the pattern follows the expected bullish structure: Low < High, Higher Low < High, Higher High > High if(L < H && HL < H && HL > L && HH > H) { // Create and display text objects for Low, High, Higher Low, and Higher High on the chart ObjectCreate(chart_id, L_letter, OBJ_TEXT, 0, L_time, L); ObjectSetString(chart_id, L_letter, OBJPROP_TEXT, "L"); ObjectSetInteger(chart_id, L_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, L_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, H_letter, OBJ_TEXT, 0, H_time, H); ObjectSetString(chart_id, H_letter, OBJPROP_TEXT, "H"); ObjectSetInteger(chart_id, H_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, H_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HL_letter, OBJ_TEXT, 0, HL_time, HL); ObjectSetString(chart_id, HL_letter, OBJPROP_TEXT, "HL"); ObjectSetInteger(chart_id, HL_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HL_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HH_letter, OBJ_TEXT, 0, HH_time, HH); ObjectSetString(chart_id, HH_letter, OBJPROP_TEXT, "HH"); ObjectSetInteger(chart_id, HH_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HH_letter, OBJPROP_FONTSIZE, 15); } break; // Exit the loop once the pattern is found } } break; // Exit the loop once the higher low is found } } break; // Exit the loop once the higher high is found } } } } } } //--- return value of prev_calculated for next call return(rates_total); }
Output:
Explanation:
The input parameters that are set at the beginning of the code are used to examine the market structure. To determine swing highs or lows and guarantee relevance in the current market, LookbackBars specifies the number of bars that are evaluated before and after the current bar. Meanwhile, bars_check controls the number of bars of price data that will be examined in total, enabling the script to search through up to 1000 bars searching for possible bullish patterns.
Although it will also require more computing power, larger values for bars_check indicate that the algorithm will consider a wider range of data when searching for these locations. A boolean input called show_bullish controls whether the buy signals, or bullish signals, should be displayed. The application will proceed to analyze price movement and determine the bullish market structure based on swing points if show_bullish is set to true. Even if the requirements are satisfied, the script will not plot or highlight any bullish structures if it is set to false.
The check for show_bullish == true is the first action that takes place in terms of the indicator's logic. This guarantees that only when you have the desire to see buy signals will the bullish structure be identified. The program then checks to see if there is sufficient price data available for the analysis, if the criteria are satisfied. The condition if (rates_total >= bars_check) is used to verify this. To prevent errors from inadequate data, the analysis is skipped if there are fewer bars available than necessary. The script then loops over the price data to find swing spots if the criterion is met.
The outer loop begins with i, which looks for legitimate swing lows by scanning the price data backward from the most recent bar. The function IsSwingLow() determines whether the current bar is the lowest in the range specified by LookbackBars, hence identifying a swing low. The price and time of the low are recorded into the variables L and L_time as soon as a swing low is identified. This lays the groundwork for the subsequent phase of the bullish pattern discovery process. Following the identification of the swing low, the program searches for another swing high. Using IsSwingHigh(), the second loop, indexed by j, looks for a swing high in each succeeding bar. The values of any swing high that is discovered to follow the low are recorded in H and H_time. This creates the initial segment of the bullish market structure, which consists of a low and a high.
After the swing high, the third loop, which is indexed by k, searches for a higher low. The script uses IsSwingLow() once more to find a higher low, which is defined as a low that is greater than the initial low L. When a higher low is discovered, HL and HL_time are updated with its value and time. Following the identification of this higher low, the program keeps looking for the subsequent higher high. The swing high that follows the higher low is checked for in the fourth loop, which is indexed by l. Its values are saved in HH and HH_time if this greater high is discovered. The code determines whether the four critical points — low, high, higher low, and higher high — follow a legitimate bullish pattern after they have been found. First low should be less than first high, higher low should be less than first high, higher low should be greater than first low, and higher high should be greater than first high. These criteria are checked by the condition if (L < H && HL < H && HL > L && HH > H). This confirms a bullish trend by ensuring that the pattern follows the anticipated sequence of higher highs and higher lows.

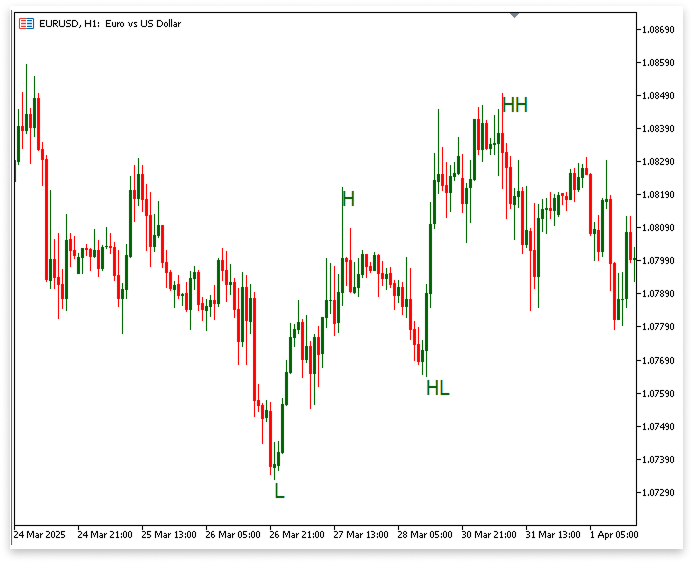

The program then creates and displays text objects on the chart to highlight the points that have been identified if all of these requirements are satisfied. The chart shows the points as labels at the appropriate periods and prices: Low (L), High (H), Higher Low (HL), and Higher High (HH). ObjectCreate() is used to create the text objects, while ObjectSetInteger() and ObjectSetString() are used to set their characteristics, including font size and color. With the points prominently indicated for reference, the user may now easily recognize the bullish structure on the chart. In summary, the program's goal is to find a pattern of higher highs and higher lows in price data to assess it for a bullish market structure. It accomplishes this by looking at swing points within a predetermined range of bars, recording the relevant information, and determining whether the structure exhibits the appropriate pattern. If the pattern is verified, the user can see it visually on the chart. The input parameters, which enable modification according to the user's preferences, govern the entire procedure.
2.2.1. Mapping Premium and Discount Levels from Higher Low to Higher High
The division aids in defining the terms "premium zone" and "discount zone." Below the 50% mark, the discount zone denotes the range of prices that are thought to be more advantageous or "cheaper" for possible purchases. The premium zone, on the other hand, is above the 50% mark and denotes comparatively "expensive" rates. To optimize risk-to-reward, traders typically choose to purchase from the discount zone in many trading methods; however, for this specific indicator, we adopt a slightly different strategy.
In this instance, we are only interested in buying when the market trades above the premium zone or breaks the Higher High structure. This pattern indicates that the bullish structure is still in place and that the price is probably going to keep rising. To stay in line with the trend and lessen the chance of buying into a pullback or reversal, it is recommended to wait for the break above the Higher High or premium zone.
Example:
// CHART ID long chart_id = ChartID(); // Input parameters input int LookbackBars = 10; // Number of bars to look back/forward for swing points input int bars_check = 1000; // Number of bars to check for swing points input bool show_bullish = true; //Show Buy Signals // Variables for Bullish Market Structure double L; // Low: the starting low point in the up trend datetime L_time; // Time of the low string L_letter; // Label for the low point (e.g., "L") double H; // High: the first high after the low datetime H_time; // Time of the high string H_letter; // Label for the high point (e.g., "H") double HL; // Higher Low: the next low that is higher than the first low datetime HL_time; // Time of the higher low string HL_letter; // Label for the higher low point (e.g., "HL") double HH; // Higher High: the next high that is higher than the first high datetime HH_time; // Time of the higher high string HH_letter; // Label for the higher high point (e.g., "HH") // Variables for Premium and Discount string pre_dis_box; // Name/ID for the premium-discount zone box (rectangle object on chart) double lvl_50; // The price level representing the 50% retracement between Higher Low and Higher High string lvl_50_line; // Name/ID for the horizontal line marking the 50% level //+------------------------------------------------------------------+ //| Custom indicator initialization function | //+------------------------------------------------------------------+ int OnInit() { //--- indicator buffers mapping //--- return(INIT_SUCCEEDED); } //+------------------------------------------------------------------+ //| Expert deinitialization function | //+------------------------------------------------------------------+ void OnDeinit(const int reason) { ObjectsDeleteAll(chart_id); } //+------------------------------------------------------------------+ //| Custom indicator iteration function | //+------------------------------------------------------------------+ int OnCalculate(const int rates_total, const int prev_calculated, const datetime &time[], const double &open[], const double &high[], const double &low[], const double &close[], const long &tick_volume[], const long &volume[], const int &spread[]) { //--- if(show_bullish == true) // Check if the bullish trend is to be displayed { if(rates_total >= bars_check) // Ensure enough bars are available for analysis { // Loop through the price data starting from a certain point based on bars_check and LookbackBars for(int i = rates_total - bars_check; i < rates_total - LookbackBars; i++) { // Check if the current bar is a swing low if(IsSwingLow(low, i, LookbackBars)) { // Store the values for the swing low L = low[i]; L_time = time[i]; L_letter = StringFormat("Low%d", i); // Loop through further to find a swing high after the low for(int j = i; j < rates_total - LookbackBars; j++) { // Check if the current bar is a swing high and occurs after the identified swing low if(IsSwingHigh(high, j, LookbackBars) && time[j] > L_time) { // Store the values for the swing high H = high[j]; H_time = time[j]; H_letter = StringFormat("High%d", j); // Loop further to find a higher low after the swing high for(int k = j; k < rates_total - LookbackBars; k++) { // Check if the current bar is a swing low and occurs after the swing high if(IsSwingLow(low, k, LookbackBars) && time[k] > H_time) { // Store the values for the higher low HL = low[k]; HL_time = time[k]; HL_letter = StringFormat("Higher Low%d", j); // Loop further to find a higher high after the higher low for(int l = j ; l < rates_total - LookbackBars; l++) { // Check if the current bar is a swing high and occurs after the higher low if(IsSwingHigh(high, l, LookbackBars) && time[l] > HL_time) { // Store the values for the higher high HH = high[l]; HH_time = time[l]; HH_letter = StringFormat("Higher High%d", l); // Check if the pattern follows the expected bullish structure: Low < High, Higher Low < High, Higher High > High if(L < H && HL < H && HL > L && HH > H) { // Create and display text objects for Low, High, Higher Low, and Higher High on the chart ObjectCreate(chart_id, L_letter, OBJ_TEXT, 0, L_time, L); ObjectSetString(chart_id, L_letter, OBJPROP_TEXT, "L"); ObjectSetInteger(chart_id, L_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, L_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, H_letter, OBJ_TEXT, 0, H_time, H); ObjectSetString(chart_id, H_letter, OBJPROP_TEXT, "H"); ObjectSetInteger(chart_id, H_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, H_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HL_letter, OBJ_TEXT, 0, HL_time, HL); ObjectSetString(chart_id, HL_letter, OBJPROP_TEXT, "HL"); ObjectSetInteger(chart_id, HL_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HL_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HH_letter, OBJ_TEXT, 0, HH_time, HH); ObjectSetString(chart_id, HH_letter, OBJPROP_TEXT, "HH"); ObjectSetInteger(chart_id, HH_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HH_letter, OBJPROP_FONTSIZE, 15); // Calculate the 50% retracement level between the Higher Low and Higher High lvl_50 = HL + ((HH - HL)/2); // Generate unique names for the premium-discount box and the 50% level line using the current loop index pre_dis_box = StringFormat("Premium and Discount Box%d", i); lvl_50_line = StringFormat("Level 50 Line%d", i); // Create a rectangle object representing the premium-discount zone from the Higher Low to the Higher High ObjectCreate(chart_id, pre_dis_box, OBJ_RECTANGLE, 0, HL_time, HL, time[l + LookbackBars], HH); // Create a trend line (horizontal line) marking the 50% retracement level ObjectCreate(chart_id, lvl_50_line, OBJ_TREND, 0, HL_time, lvl_50, time[l + LookbackBars], lvl_50); // Set the color of the premium-discount box to dark green ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_COLOR, clrDarkGreen); // Set the color of the 50% level line to dark green ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_COLOR, clrDarkGreen); // Set the width of the premium-discount box for better visibility ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_WIDTH, 2); // Set the width of the 50% level line for better visibility ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_WIDTH, 2); } break; // Exit the loop once the pattern is found } } break; // Exit the loop once the higher low is found } } break; // Exit the loop once the higher high is found } } } } } } //--- return value of prev_calculated for next call return(rates_total); }
Output:
Explanation:
The code determines the 50% retracement level, which is the halfway between the Higher Low (HL) and Higher High (HH). The premium (above) and discount (below) zones are separated by this level. The midway point between HL and HH is determined using the formula lvl_50 = HL + ((HH - HL)/2);. Next, the loop index i is included in the names of two string variables, pre_dis_box and lvl_50_line. These serve as distinct identifiers for the visual elements we will be drawing on the chart. Each drawing will be unique and won't replace earlier ones if the loop index is included.
A rectangle is created on the chart by the line ObjectCreate(chart_id, pre_dis_box, OBJ_RECTANGLE, 0, HL_time, HL, time[l + LookbackBars], HH); which graphically depicts the transition from the higher low to the higher high. Traders can quickly determine the range of the most recent bullish swing with the use of this box. The rectangle's end is anchored at a future bar (l + LookbackBars) using the HH price, while its beginning is anchored at the HL's time and price. This keeps the box visible by extending it slightly into the future.
A horizontal line is then drawn across the chart at the 50% level by the line ObjectCreate(chart_id, lvl_50_line, OBJ_TREND, 0, HL_time, lvl_50, time[l + LookbackBars], lvl_50);. This threshold is important because, according to the logic of this indicator, we are only looking for possible buy signals when the market is trading above the premium zone, or over the 50% level of the most recent upswing. The box's and the line's colors are set to clrDarkGreen, and the ObjectSetInteger function is used to boost their thickness (or width) to 2 to make them both visually clear. The market must fully break above the HH for a buy signal to be deemed valid; in other words, the price must close outside and above the whole premium zone. Put another way, we only want to purchase when the market structure is clearly bullish and has beyond the previous swing high (HH).
2.2.2. Indicating Entry Point, Stop Loss, and Take Profit
Finding possible buy signals comes next once the premium and discount zones between the Higher Low (HL) and Higher High (HH) have been correctly marked. Waiting for a bullish breakout bar to break above the Higher High (HH), which indicates that the market is still moving strongly upward, is the key to a legitimate buy setup.
But crossing over the HH alone is insufficient. The bullish bar must close above the HH for the entry to be verified because we need to make sure the breakout is real. The fact that the price closed above the HH suggests that there is ongoing purchasing demand and that it will probably keep climbing. The entry point is established at the close of the bullish bar that breaks above the HH after the breakout has been verified. We are certain that the market has demonstrated sufficient strength currently for us to enter the trade.
We set the Stop Loss (SL) at the 50% level (lvl_50), which is the middle point between the HL and HH, to guard against a possible reversal. To avoid getting caught in a possible retreat into the discount zone (below the 50% level), which can indicate a change in market mood, we have put the SL here. Our method is based on the Risk-to-Reward (R:R) ratio for the Take Profit (TP) levels. The profit objective for the first Take Profit level, TP1, is equal to the risk distance between the entry point and the SL since it is set at a 1:1 R:R. The profit target for the second Take Profit level, or TP2, is twice the distance between the entrance point and the SL, with a 1:2 R:R setting. For traders who would rather lock in partial profits at TP1, these two take-profit levels offer flexibility, allowing them to leave a portion of the trade open to profit from additional gains should the market continue its positive trend.
Example:
// Variables for Entry, Stop Loss, and Take Profit string entry_line; // Line object to represent the entry point on the chart string entry_txt; // Text object for displaying "BUY" at the entry point double lvl_SL; // Stop Loss level (set at the 50% retracement level) string lvl_sl_line; // Line object for representing the Stop Loss level string lvl_sl_txt; // Text object for labeling the Stop Loss level double TP1; // Take Profit 1 level (1:1 risk-reward ratio) double TP2; // Take Profit 2 level (1:2 risk-reward ratio) string lvl_tp_line; // Line object for representing the Take Profit 1 level string lvl_tp2_line; // Line object for representing the Take Profit 2 level string lvl_tp_txt; // Text object for labeling the Take Profit 1 level string lvl_tp2_txt; // Text object for labeling the Take Profit 2 level string buy_object; // Arrow object to indicate the Buy signal on the chart
if(show_bullish == true) // Check if the bullish trend is to be displayed { if(rates_total >= bars_check) // Ensure enough bars are available for analysis { // Loop through the price data starting from a certain point based on bars_check and LookbackBars for(int i = rates_total - bars_check; i < rates_total - LookbackBars; i++) { // Check if the current bar is a swing low if(IsSwingLow(low, i, LookbackBars)) { // Store the values for the swing low L = low[i]; L_time = time[i]; L_letter = StringFormat("Low%d", i); // Loop through further to find a swing high after the low for(int j = i; j < rates_total - LookbackBars; j++) { // Check if the current bar is a swing high and occurs after the identified swing low if(IsSwingHigh(high, j, LookbackBars) && time[j] > L_time) { // Store the values for the swing high H = high[j]; H_time = time[j]; H_letter = StringFormat("High%d", j); // Loop further to find a higher low after the swing high for(int k = j; k < rates_total - LookbackBars; k++) { // Check if the current bar is a swing low and occurs after the swing high if(IsSwingLow(low, k, LookbackBars) && time[k] > H_time) { // Store the values for the higher low HL = low[k]; HL_time = time[k]; HL_letter = StringFormat("Higher Low%d", j); // Loop further to find a higher high after the higher low for(int l = j ; l < rates_total - LookbackBars; l++) { // Check if the current bar is a swing high and occurs after the higher low if(IsSwingHigh(high, l, LookbackBars) && time[l] > HL_time) { // Store the values for the higher high HH = high[l]; HH_time = time[l]; HH_letter = StringFormat("Higher High%d", l); // Check if the pattern follows the expected bullish structure: Low < High, Higher Low < High, Higher High > High if(L < H && HL < H && HL > L && HH > H) { // Create and display text objects for Low, High, Higher Low, and Higher High on the chart ObjectCreate(chart_id, L_letter, OBJ_TEXT, 0, L_time, L); ObjectSetString(chart_id, L_letter, OBJPROP_TEXT, "L"); ObjectSetInteger(chart_id, L_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, L_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, H_letter, OBJ_TEXT, 0, H_time, H); ObjectSetString(chart_id, H_letter, OBJPROP_TEXT, "H"); ObjectSetInteger(chart_id, H_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, H_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HL_letter, OBJ_TEXT, 0, HL_time, HL); ObjectSetString(chart_id, HL_letter, OBJPROP_TEXT, "HL"); ObjectSetInteger(chart_id, HL_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HL_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HH_letter, OBJ_TEXT, 0, HH_time, HH); ObjectSetString(chart_id, HH_letter, OBJPROP_TEXT, "HH"); ObjectSetInteger(chart_id, HH_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HH_letter, OBJPROP_FONTSIZE, 15); // Calculate the 50% retracement level between the Higher Low and Higher High lvl_50 = HL + ((HH - HL)/2); // Generate unique names for the premium-discount box and the 50% level line using the current loop index pre_dis_box = StringFormat("Premium and Discount Box%d", i); lvl_50_line = StringFormat("Level 50 Line%d", i); // Create a rectangle object representing the premium-discount zone from the Higher Low to the Higher High ObjectCreate(chart_id, pre_dis_box, OBJ_RECTANGLE, 0, HL_time, HL, time[l + LookbackBars], HH); // Create a trend line (horizontal line) marking the 50% retracement level ObjectCreate(chart_id, lvl_50_line, OBJ_TREND, 0, HL_time, lvl_50, time[l + LookbackBars], lvl_50); // Set the color of the premium-discount box to dark green ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_COLOR, clrDarkGreen); // Set the color of the 50% level line to dark green ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_COLOR, clrDarkGreen); // Set the width of the premium-discount box for better visibility ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_WIDTH, 2); // Set the width of the 50% level line for better visibility ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_WIDTH, 2); for(int m = l; m < rates_total-1; m++) { if(close[m] > open[m] && close[m] > HH && time[m] >= time[l+LookbackBars]) { TP1 = close[m] + (close[m] - lvl_50); TP2 = TP1 + (close[m] - lvl_50); entry_line = StringFormat("Entry%d", m); lvl_sl_line = StringFormat("SL%d", m); lvl_tp_line = StringFormat("TP%d", m); lvl_tp2_line = StringFormat("TP 2%d", m); ObjectCreate(chart_id,entry_line,OBJ_TREND,0,HL_time,close[m],time[m],close[m]); ObjectCreate(chart_id,lvl_sl_line,OBJ_TREND,0,HL_time,lvl_50,time[m],lvl_50); ObjectCreate(chart_id,lvl_tp_line,OBJ_TREND,0,HL_time,TP1,time[m],TP1); ObjectCreate(chart_id,lvl_tp2_line,OBJ_TREND,0,HL_time,TP2,time[m],TP2); ObjectSetInteger(chart_id,entry_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_sl_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_tp_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_tp2_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,entry_line,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_sl_line,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_tp_line,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_tp2_line,OBJPROP_COLOR,clrDarkGreen); entry_txt = StringFormat("Entry Text%d", m); lvl_sl_txt = StringFormat("SL Text%d", m); lvl_tp_txt = StringFormat("TP 1 Text%d", m); lvl_tp2_txt = StringFormat("TP 2 Text%d", m); ObjectCreate(chart_id, lvl_sl_txt, OBJ_TEXT, 0,time[m],lvl_50); ObjectSetString(chart_id, lvl_sl_txt, OBJPROP_TEXT, "SL"); ObjectSetInteger(chart_id,lvl_sl_txt,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_sl_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, entry_txt, OBJ_TEXT, 0,time[m],close[m]); ObjectSetString(chart_id, entry_txt, OBJPROP_TEXT, "BUY"); ObjectSetInteger(chart_id,entry_txt,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,entry_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, lvl_tp_txt, OBJ_TEXT, 0,time[m],TP1); ObjectSetString(chart_id, lvl_tp_txt, OBJPROP_TEXT, "TP1"); ObjectSetInteger(chart_id,lvl_tp_txt,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_tp_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, lvl_tp2_txt, OBJ_TEXT, 0,time[m],TP2); ObjectSetString(chart_id, lvl_tp2_txt, OBJPROP_TEXT, "TP2"); ObjectSetInteger(chart_id,lvl_tp2_txt,OBJPROP_COLOR,clrDarkGreen); ObjectSetInteger(chart_id,lvl_tp2_txt,OBJPROP_FONTSIZE,15); buy_object = StringFormat("Buy Object%d", m); ObjectCreate(chart_id,buy_object,OBJ_ARROW_BUY,0,time[m],close[m]); break; } } } break; // Exit the loop once the pattern is found } } break; // Exit the loop once the higher low is found } } break; // Exit the loop once the higher high is found } } } } } }Output:
You can see that the premium and discount zones, as well as the buy signal markers, are not precisely drawn in the image above. This is because certain conditions were overlooked before the objects being drawn on the chart. To improve the approach, we must include more verifications to make sure the buy signal is legitimate. Before sketching any objects on the chart, we must first make sure that a candle has truly broken the higher high (HH). A break of the HH signifies a continuation of the bullish trend, which is required for the buy signal to be deemed legitimate, making this a critical criterion. We shouldn't start the entry and risk management computations until this requirement has been satisfied.
The number of bars from the higher low (HL) to the end of the premium and discount box must then be counted. This guarantees that the price action is within an acceptable range and aids in our understanding of how far the market has moved. After this count is finished, we need to confirm that the bullish bar's close price, which broke the higher high (HH), is near to the premium and discount box. This guarantees that the buy signal is not too far from the anticipated market structure and is occurring within a fair price range.
Example:
// Declare variables to count bars int n_bars; // Number of bars from Higher Low to the end of the Premium/Discount box int n_bars_2; // Number of bars from the end of the Premium/Discount box to the bullish bar that broke HH
if(show_bullish == true) // Check if the bullish trend is to be displayed { if(rates_total >= bars_check) // Ensure enough bars are available for analysis { // Loop through the price data starting from a certain point based on bars_check and LookbackBars for(int i = rates_total - bars_check; i < rates_total - LookbackBars; i++) { // Check if the current bar is a swing low if(IsSwingLow(low, i, LookbackBars)) { // Store the values for the swing low L = low[i]; L_time = time[i]; L_letter = StringFormat("Low%d", i); // Loop through further to find a swing high after the low for(int j = i; j < rates_total - LookbackBars; j++) { // Check if the current bar is a swing high and occurs after the identified swing low if(IsSwingHigh(high, j, LookbackBars) && time[j] > L_time) { // Store the values for the swing high H = high[j]; H_time = time[j]; H_letter = StringFormat("High%d", j); // Loop further to find a higher low after the swing high for(int k = j; k < rates_total - LookbackBars; k++) { // Check if the current bar is a swing low and occurs after the swing high if(IsSwingLow(low, k, LookbackBars) && time[k] > H_time) { // Store the values for the higher low HL = low[k]; HL_time = time[k]; HL_letter = StringFormat("Higher Low%d", j); // Loop further to find a higher high after the higher low for(int l = j ; l < rates_total - LookbackBars; l++) { // Check if the current bar is a swing high and occurs after the higher low if(IsSwingHigh(high, l, LookbackBars) && time[l] > HL_time) { // Store the values for the higher high HH = high[l]; HH_time = time[l]; HH_letter = StringFormat("Higher High%d", l); // Loop through the bars to check for the conditions for entry for(int m = l; m < rates_total-1; m++) { // Check if the current bar is a bullish bar and if the price has broken the higher high (HH) if(close[m] > open[m] && close[m] > HH && time[m] >= time[l+LookbackBars]) { // Count the bars between HL_time and the end of the Premium/Discount box n_bars = Bars(_Symbol, PERIOD_CURRENT, HL_time, time[l + LookbackBars]); // Count the bars between the end of the Premium/Discount box and the candle that broke HH n_bars_2 = Bars(_Symbol, PERIOD_CURRENT, time[l + LookbackBars], time[m]); // Check if the pattern follows the expected bullish structure: Low < High, Higher Low < High, Higher High > High if(L < H && HL < H && HL > L && HH > H && open[l+LookbackBars] <= HH && n_bars_2 < n_bars) { // Create and display text objects for Low, High, Higher Low, and Higher High on the chart ObjectCreate(chart_id, L_letter, OBJ_TEXT, 0, L_time, L); ObjectSetString(chart_id, L_letter, OBJPROP_TEXT, "L"); ObjectSetInteger(chart_id, L_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, L_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, H_letter, OBJ_TEXT, 0, H_time, H); ObjectSetString(chart_id, H_letter, OBJPROP_TEXT, "H"); ObjectSetInteger(chart_id, H_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, H_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HL_letter, OBJ_TEXT, 0, HL_time, HL); ObjectSetString(chart_id, HL_letter, OBJPROP_TEXT, "HL"); ObjectSetInteger(chart_id, HL_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HL_letter, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, HH_letter, OBJ_TEXT, 0, HH_time, HH); ObjectSetString(chart_id, HH_letter, OBJPROP_TEXT, "HH"); ObjectSetInteger(chart_id, HH_letter, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, HH_letter, OBJPROP_FONTSIZE, 15); // Calculate the 50% retracement level between the Higher Low and Higher High lvl_50 = HL + ((HH - HL)/2); // Generate unique names for the premium-discount box and the 50% level line using the current loop index pre_dis_box = StringFormat("Premium and Discount Box%d", i); lvl_50_line = StringFormat("Level 50 Line%d", i); // Create a rectangle object representing the premium-discount zone from the Higher Low to the Higher High ObjectCreate(chart_id, pre_dis_box, OBJ_RECTANGLE, 0, HL_time, HL, time[l + LookbackBars], HH); // Create a trend line (horizontal line) marking the 50% retracement level ObjectCreate(chart_id, lvl_50_line, OBJ_TREND, 0, HL_time, lvl_50, time[l + LookbackBars], lvl_50); // Set the color of the premium-discount box to dark green ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_COLOR, clrDarkGreen); // Set the color of the 50% level line to dark green ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_COLOR, clrDarkGreen); // Set the width of the premium-discount box for better visibility ObjectSetInteger(chart_id, pre_dis_box, OBJPROP_WIDTH, 2); // Set the width of the 50% level line for better visibility ObjectSetInteger(chart_id, lvl_50_line, OBJPROP_WIDTH, 2); // Calculate Take Profit levels based on the 50% retracement TP1 = close[m] + (close[m] - lvl_50); // TP1 at 1:1 risk-reward ratio TP2 = TP1 + (close[m] - lvl_50); // TP2 at 1:2 risk-reward ratio // Create unique object names for Entry, Stop Loss, and Take Profit lines and text entry_line = StringFormat("Entry%d", m); lvl_sl_line = StringFormat("SL%d", m); lvl_tp_line = StringFormat("TP%d", m); lvl_tp2_line = StringFormat("TP 2%d", m); // Create the lines on the chart for Entry, Stop Loss, and Take Profit levels ObjectCreate(chart_id, entry_line, OBJ_TREND, 0, HL_time, close[m], time[m], close[m]); ObjectCreate(chart_id, lvl_sl_line, OBJ_TREND, 0, HL_time, lvl_50, time[m], lvl_50); ObjectCreate(chart_id, lvl_tp_line, OBJ_TREND, 0, HL_time, TP1, time[m], TP1); ObjectCreate(chart_id, lvl_tp2_line, OBJ_TREND, 0, HL_time, TP2, time[m], TP2); // Set the properties for the lines (width, color, etc.) ObjectSetInteger(chart_id, entry_line, OBJPROP_WIDTH, 2); ObjectSetInteger(chart_id, lvl_sl_line, OBJPROP_WIDTH, 2); ObjectSetInteger(chart_id, lvl_tp_line, OBJPROP_WIDTH, 2); ObjectSetInteger(chart_id, lvl_tp2_line, OBJPROP_WIDTH, 2); ObjectSetInteger(chart_id, entry_line, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_sl_line, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_tp_line, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_tp2_line, OBJPROP_COLOR, clrDarkGreen); // Create the text labels for Entry, Stop Loss, and Take Profit levels entry_txt = StringFormat("Entry Text%d", m); lvl_sl_txt = StringFormat("SL Text%d", m); lvl_tp_txt = StringFormat("TP 1 Text%d", m); lvl_tp2_txt = StringFormat("TP 2 Text%d", m); // Create the text objects for the Entry, Stop Loss, and Take Profit labels ObjectCreate(chart_id, lvl_sl_txt, OBJ_TEXT, 0, time[m], lvl_50); ObjectSetString(chart_id, lvl_sl_txt, OBJPROP_TEXT, "SL"); ObjectSetInteger(chart_id, lvl_sl_txt, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_sl_txt, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, entry_txt, OBJ_TEXT, 0, time[m], close[m]); ObjectSetString(chart_id, entry_txt, OBJPROP_TEXT, "BUY"); ObjectSetInteger(chart_id, entry_txt, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, entry_txt, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, lvl_tp_txt, OBJ_TEXT, 0, time[m], TP1); ObjectSetString(chart_id, lvl_tp_txt, OBJPROP_TEXT, "TP1"); ObjectSetInteger(chart_id, lvl_tp_txt, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_tp_txt, OBJPROP_FONTSIZE, 15); ObjectCreate(chart_id, lvl_tp2_txt, OBJ_TEXT, 0, time[m], TP2); ObjectSetString(chart_id, lvl_tp2_txt, OBJPROP_TEXT, "TP2"); ObjectSetInteger(chart_id, lvl_tp2_txt, OBJPROP_COLOR, clrDarkGreen); ObjectSetInteger(chart_id, lvl_tp2_txt, OBJPROP_FONTSIZE, 15); // Create a Buy arrow object to indicate the Buy signal on the chart buy_object = StringFormat("Buy Object%d", m); ObjectCreate(chart_id, buy_object, OBJ_ARROW_BUY, 0, time[m], close[m]); break; // Exit the loop once a Buy signal is found } } } break; // Exit the loop once the pattern is found } } break; // Exit the loop once the higher low is found } } break; // Exit the loop once the higher high is found } } } } } }
Output:
Explanation:
Two integer variables, n_bars and n_bars_2, were declared in the code's global space. The number of candlesticks (bars) between important points in the bullish market structure pattern is determined by these variables. In particular, n_bars is the number of bars that separate the Premium/Discount box's end (time[l + LookbackBars]) from the Higher Low (HL). However, n_bars_2 counts the number of bars that separate the bullish candlestick that broke the Higher High (HH) from the end of the Premium/Discount box. This count is used to assess if the price action has strayed too far from the optimal trading zone or whether the buy signal is still valid.
These variables are employed later in the code as part of an extra validation condition that strengthens the argument for a bullish market structure. An additional condition n_bars_2 < n_bars is checked after determining the Low, High, Higher Low, and Higher High (making sure they adhere to the structure L < H, HL < H, HL > L, and HH > H) and verifying that the opening price of the candle that ended the Premium/Discount box is not higher than the Higher High. This makes sure that the bullish breakout candle (the one that breaks above HH) doesn't show up too far after the formation, which could suggest a weak or invalid setup, and that it shows up fairly close to the pattern.
All the ObjectCreate() and ObjectSet*() routines that were previously used to draw the chart's Low, High, Higher Low, Higher High, Premium/Discount box, 50% line, and Entry/SL/TP markers were transferred inside this if statement to impose this more stringent inspection. This implies that only when all the bullish structure and time requirements are satisfied will these visual components be produced and shown. By doing this, the chart stays clear and isn't overloaded with erroneous or premature items due to misleading signals.
2.3. Bearish Trend
This indicator must first use market structure to validate a downturn before it can indicate a sell. Finding a series of significant pricing points — a high, a low, a lower high, and a lower low — is how this is accomplished. This pattern demonstrates that sellers are in control and that the market is probably going to keep moving lower, which supports bearish momentum. The indicator will start looking for legitimate sell signals as soon as this structure is verified.
Example:
// Variables for Bearish Market Structure double LH; // Lower High: the high formed after the initial low in a downtrend datetime LH_time; // Time of the Lower High string LH_letter; // Label used to display the Lower High on the chart (e.g., "LH") double LL; // Lower Low: the new low formed after the Lower High in a downtrend datetime LL_time; // Time of the Lower Low string LL_letter; // Label used to display the Lower Low on the chart (e.g., "LL") string sell_object; // Arrow object to indicate the Sell signal on the chart
// BEARISH TREND if(show_bearish == true) // Check if the user enabled the bearish trend display { if(rates_total >= bars_check) // Ensure enough candles are available for processing { // Loop through historical bars to find a swing high (potential start of bearish structure) for(int i = rates_total - bars_check; i < rates_total - LookbackBars; i++) { if(IsSwingHigh(high, i, LookbackBars)) // Detect first swing high { H = high[i]; H_time = time[i]; H_letter = StringFormat("High B%d", i); // Label for the high // From the swing high, look for the next swing low for(int j = i; j < rates_total - LookbackBars; j++) { if(IsSwingLow(low, j, LookbackBars) && time[j] > H_time) // Confirm next swing low { L = low[j]; L_time = time[j]; L_letter = StringFormat("Low B%d", j); // Label for the low // From the swing low, look for the Lower High for(int k = j; k < rates_total - LookbackBars; k++) { if(IsSwingHigh(high, k, LookbackBars) && time[k] > L_time) { LH = high[k]; LH_time = time[k]; LH_letter = StringFormat("Lower High%d", k); // Label for the Lower High // From the LH, find a Lower Low for(int l = j ; l < rates_total - LookbackBars; l++) { if(IsSwingLow(low, l, LookbackBars) && time[l] > LH_time) { LL = low[l]; LL_time = time[l]; LL_letter = StringFormat("Lower Low%d", l); // Label for Lower Low // Calculate 50% retracement level from LH to LL lvl_50 = LL + ((LH - LL)/2); // Prepare object names pre_dis_box = StringFormat("Gan Box B%d", i); lvl_50_line = StringFormat("Level 50 Line B%d", i); // Search for a bearish entry condition for(int m = l; m < rates_total-1; m++) { // Confirm bearish candle breaking below the LL if(close[m] < open[m] && close[m] < LL && time[m] >= time[l+LookbackBars]) { // Count bars for pattern distance validation n_bars = Bars(_Symbol,PERIOD_CURRENT,LH_time, time[l+LookbackBars]); // From LH to box end n_bars_2 = Bars(_Symbol,PERIOD_CURRENT,time[l+LookbackBars], time[m]); // From box end to break candle // Confirm valid bearish structure and proximity of break candle if(H > L && LH > L && LH < H && LL < L && open[l+LookbackBars] >= LL && n_bars_2 < n_bars) { // Draw the Premium/Discount box ObjectCreate(chart_id,pre_dis_box, OBJ_RECTANGLE,0,LH_time,LH, time[l+LookbackBars],LL); ObjectCreate(chart_id,lvl_50_line, OBJ_TREND,0,LH_time,lvl_50, time[l+LookbackBars],lvl_50); ObjectSetInteger(chart_id,pre_dis_box,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_50_line,OBJPROP_WIDTH,2); // Label the structure points ObjectCreate(chart_id, H_letter, OBJ_TEXT, 0, H_time, H); ObjectSetString(chart_id, H_letter, OBJPROP_TEXT, "H"); ObjectSetInteger(chart_id,H_letter,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, L_letter, OBJ_TEXT, 0, L_time, L); ObjectSetString(chart_id, L_letter, OBJPROP_TEXT, "L"); ObjectSetInteger(chart_id,L_letter,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, LH_letter, OBJ_TEXT, 0, LH_time, LH); ObjectSetString(chart_id, LH_letter, OBJPROP_TEXT, "LH"); ObjectSetInteger(chart_id,LH_letter,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, LL_letter, OBJ_TEXT, 0, LL_time, LL); ObjectSetString(chart_id, LL_letter, OBJPROP_TEXT, "LL"); ObjectSetInteger(chart_id,LL_letter,OBJPROP_FONTSIZE,15); ObjectSetInteger(chart_id,H_letter,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,L_letter,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,LL_letter,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,LH_letter,OBJPROP_WIDTH,2); // Calculate Take Profits based on 1:1 and 1:2 RR TP1 = close[m] - (lvl_50 - close[m]); TP2 = TP1 - (lvl_50 - close[m]); // Generate entry, SL and TP object names entry_line = StringFormat("Entry B%d", m); lvl_sl_line = StringFormat("SL B%d", m); lvl_tp_line = StringFormat("TP B%d", m); lvl_tp2_line = StringFormat("TP 2 B%d", m); // Draw entry, SL, TP1, TP2 levels ObjectCreate(chart_id,entry_line,OBJ_TREND,0,LH_time,close[m],time[m],close[m]); ObjectCreate(chart_id,lvl_sl_line, OBJ_TREND,0,LH_time,lvl_50, time[m],lvl_50); ObjectCreate(chart_id,lvl_tp_line, OBJ_TREND,0,LH_time,TP1, time[m],TP1); ObjectCreate(chart_id,lvl_tp2_line, OBJ_TREND,0,LH_time,TP2, time[m],TP2); ObjectSetInteger(chart_id,entry_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_sl_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_tp_line,OBJPROP_WIDTH,2); ObjectSetInteger(chart_id,lvl_tp2_line,OBJPROP_WIDTH,2); // Generate text labels entry_txt = StringFormat("Entry Text B%d", m); lvl_sl_txt = StringFormat("SL Text B%d", m); lvl_tp_txt = StringFormat("TP Text B%d", m); lvl_tp2_txt = StringFormat("TP 2 Text B%d", m); ObjectCreate(chart_id, entry_txt, OBJ_TEXT, 0,time[m],close[m]); ObjectSetString(chart_id, entry_txt, OBJPROP_TEXT, "SELL"); ObjectSetInteger(chart_id,entry_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, lvl_sl_txt, OBJ_TEXT, 0,time[m],lvl_50); ObjectSetString(chart_id, lvl_sl_txt, OBJPROP_TEXT, "SL"); ObjectSetInteger(chart_id,lvl_sl_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, lvl_tp_txt, OBJ_TEXT, 0,time[m],TP1); ObjectSetString(chart_id, lvl_tp_txt, OBJPROP_TEXT, "TP1"); ObjectSetInteger(chart_id,lvl_tp_txt,OBJPROP_FONTSIZE,15); ObjectCreate(chart_id, lvl_tp2_txt, OBJ_TEXT, 0,time[m],TP2); ObjectSetString(chart_id, lvl_tp2_txt, OBJPROP_TEXT, "TP2"); ObjectSetInteger(chart_id,lvl_tp2_txt,OBJPROP_FONTSIZE,15); // Draw sell arrow sell_object = StringFormat("Sell Object%d", m); ObjectCreate(chart_id,sell_object,OBJ_ARROW_SELL,0,time[m],close[m]); } break; // Exit loop after valid setup } } break; // Exit LL search } } break; // Exit LH search } } break; // Exit L search } } } } } }
Output:
Explanation:
The code begins by using if(show_bearish == true) to see if the user has activated the bearish trend logic. To find a legitimate bearish market structure, the indicator loops through historical bars if it is enabled and there are enough bars available (rates_total >= bars_check). The first step in the process is to determine a swing high (H). After identifying a swing high, the code searches for a swing low (L) that follows the high. If it is discovered, it keeps looking for a lower low (LL) that validates the bearish structure, followed by a lower high (LH), which is a swing high below the first high H. Labels such as "H", "L", "LH", and "LL" are created on the chart using these values and associated timestamps.
Next, the Premium/Discount zone box is drawn from the LH to the LL, and the 50% retracement level between LH and LL is determined (lvl_50 = LL + ((LH - LL)/2). The indicator searches for a bearish candle (close < open) that closes below the LL before placing any trade-related objects (entry, SL, TP1, TP2). By using two variables, n_bars, which counts the bars from the Lower High (LH) to the end of the Premium/Discount box, and n_bars_2, which counts from the end of the box to the bearish candle that breaks the Lower Low (LL), the code also makes sure that the break of structure happens within a reasonable number of bars. The code only draws the entry line at the candle close, sets the Stop Loss (SL) at the 50% level, and positions TP1 and TP2 at 1:1 and 1:2 risk-reward levels, respectively, when all requirements are met, including proper structure, a valid break, and an appropriate distance.
Additionally, it adds a sell arrow and the words "SELL" to the bearish candle. For a downtrend, the logic is basically the same as for a positive trend pattern, but it is reversed. Since the bearish trend is only the opposite of the bullish trend, which has already been thoroughly detailed, the explanation is brief. The structure and reasoning are the same, except they are reversed to show a downward trend rather than an upward one.
Conclusion
In this article, we built an MQL5 custom indicator that identifies market structure by detecting key points such as Low (L), Lower Low (LL), Higher Low (HL), High (H), and Higher High (HH). Using these points, the indicator determines bullish or bearish trends and automatically draws entry points, stop loss at level 50, and take profit levels (TP1 and TP2) based on a structured pattern. It also marks the premium and discount zones to visually highlight where price is likely to react. All chart objects are drawn only when specific conditions are met, ensuring that the signals remain clean and reliable.
