Professional ZigZag - indicatore per MetaTrader 5

That is it?

I think that ZigZag is something like compression of the price chart. The ZigZag can be calculated using the price of the bar (for example, Close price) or High/Low prices of the bar (the most common used method)

While working with the standard ZigZag, proposed by MetaQuotes, I have found some errors. The main problem is that standard ZigZag doesn't proceed the case of the outside bar.

In 2007 Rashid Umarov (Rosh) have published the Zigzag2 R code with outside bar processing (DRAW_ZIGZAG style instead of DRAW_SECTION).

Let's define the features of the "correct" ZigZag implementation:

• The Highs and Lows must be strictly alternated;

• The High must be higher (or equal) among the all bars on the right side until the next (opposite) Low;
• The Low must be lower (or equal) among the all bars on the left side until the next (opposite) High.

Let's consider using the example (EURUSD, H1, 2006, December 8-13). Here we have two cases with the outside bar. The typical ZigZag cannot constuct the "correct" picture.

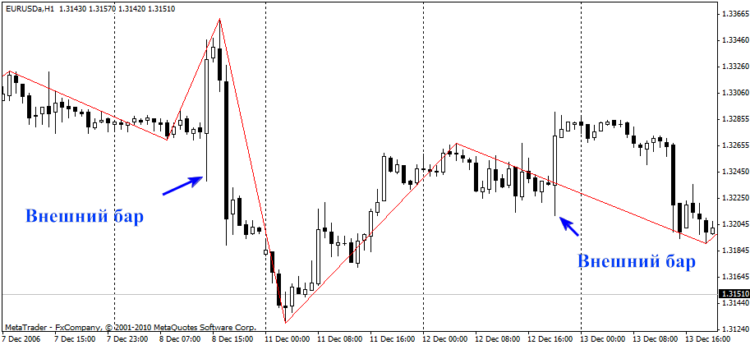

Figure 1. Typical ZigZag with input parameters [12;5;3] and [12;0;0]

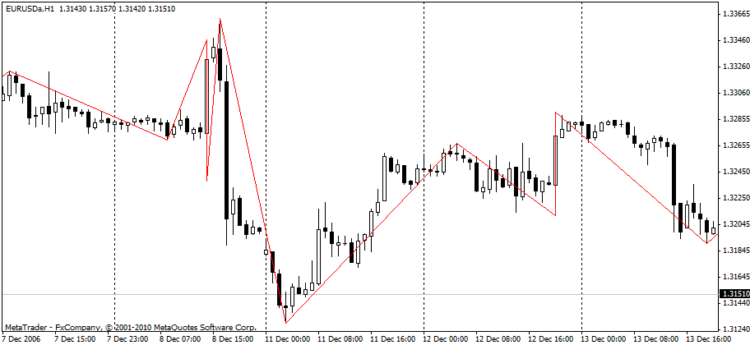

Figure 2. Zigzag2 R with input parameters [12;5;3]

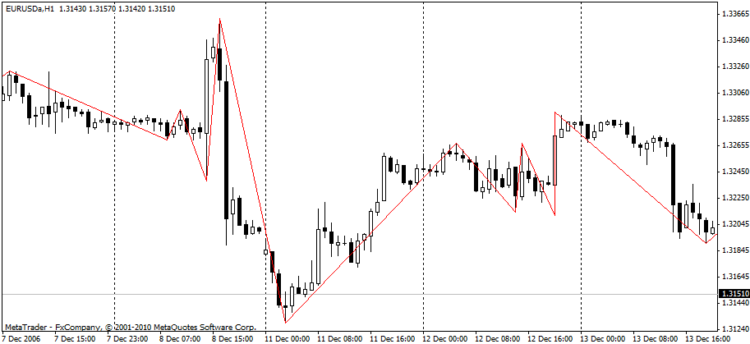

Figure 3. Zigzag2 R with input parameters [12;0;0]

At first glance, the correct construction is presented at  Figure 3 but here are some features:

1. In this case it has been constructed correctly because of the input parameters, but generally the algorithm must work with any parameters.
2. The outside bar on the left side isn't correct, because of the order of High/Low formation of the bar:


The ZigZag segments must be constucted this way.

I have tested many cases of the following ZigZag algorithms: ZigZag MT3, ZigZag, Zigzag R, Zigzag2 R, ZigZag_NK, ZigZag_ZUP89_nen, ZigZag_new_nen4, CZigZag, Swing_ZZ_1, DT_ZZ_nen, ZigZag_Talex, Reverse_ZZ, Points_ZZ_1, i_MF_Fractal_ZZ_3in1, ang_Amp_ZZ, ZigzagFr_v1, NonLagZigZag_v2, ZZ_FF_v3, ZigZag Ensign, ZigZag tauber, SQZZ Товаровед, ZZ_2L_nen wellx, Channel ZZ, Azzx_larryzz_3_0, RPoint, RPoint-m v2, ZigZagTF. But none of them has solved the problem correctly.

Here are the figures with this indicator:

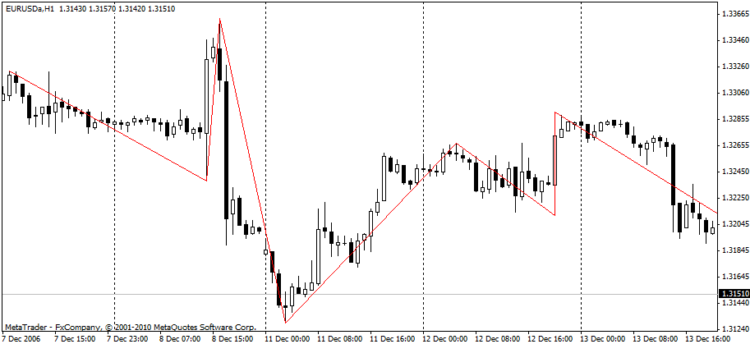

Figure 4. Professional ZigZag with input parameters [12;0]

Figure 5. Professional ZigZag with input parameters [23;0]

Some features of this version:

• one-pass algorithm

• it recalculate and redraw only the last segment (the segment cannot be cancelled except the history update)
• it has the optimization algorithm for the calculations inside the bar (it doesn't use the recalculation on the tick, if price has changed inside the 0 (uncompleted) bar or price change is lower than threshold, defined by MinMotion input parameter)
• it has two algorithms for ordering of the High/Low formation: using the bar type (fast but not precise) using the data from the lower timeframe (it needs the history, you need to check for its presence and correctness or you need to modify the OutsideBar library)

Here are some additional examples of ZigZag incorrect constructions:

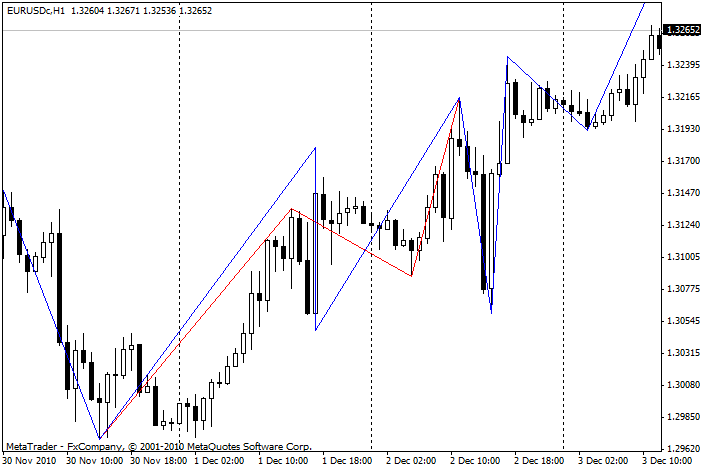

Figure 6. EURUSD, H1, November 29-December 7. (Red line: ZigZag with input parameters [7;0;0]. Blue line: Zigzag2 R with input parameters [7;0;0].)

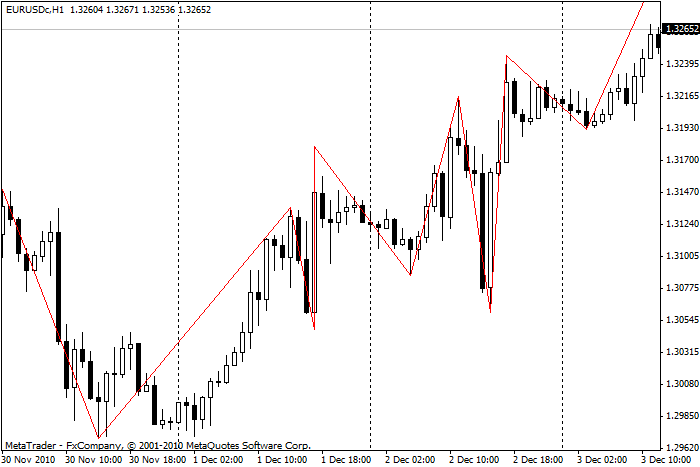

Figure 7. EURUSD, H1, 2010, November 29 - December 7. The correct construction of ZigZag segments.

Conclusion

Unfortunately this version is not perfect, but I am working on it.

Because of the channel algorithm (iHighest/iLowest), sometimes it skips the highs.

Please inform me about the bugs and features of this indicator.
