Ergodic MACD Oscillator Blau_Ergodic_MACD - indicateur pour MetaTrader 5

Author: Andrey N. Bolkonsky

Ergodic MACD Oscillator by William Blau is described in the book "Momentum, Direction, and Divergence: Applying the Latest Momentum Indicators for Technical Analysis".

• WilliamBlau.mqh must be placed in terminal_data_folder\MQL5\Include\
• Blau_Ergodic_MACD.mq5 must be placed in terminal_data_folder\MQL5\Indicators\

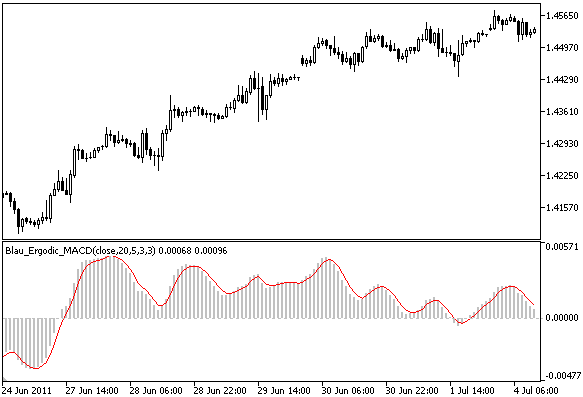

Erogdic MACD Oscillator by William Blau

Calculation:

Ergodic MACD Oscillator is defined as follows:

where:

• Ergodic_MACD() - Ergodic - MACD(price,r,s,u);
• SignalLine() - Signal Line - exponentially smoothed moving average EMA(ul), applied to MACD;

In contrast with the standard MACD indicator (it uses the simple moving average), the exponentially smoothed moving average is used in the approach, proposed by William Blau.

• graphic plot #0 - Ergodic (moving average convergence/divergence):
• r - period of the 1st EMA (slow), applied to price (by default r=20);
• s - period of the 2nd EMA (fast), applied to price (by default s=5)
• u - period of the 3rd EMA, applied to MACD (by default u=3);
• graphic plot #1 - Signal Line:
• ul - smoothing period (signal line), applied to Ergodic (by default ul=3);
• AppliedPrice - price type (by default AppliedPrice=PRICE_CLOSE).

• r>1, s>1;
• s<r (according to William Blau, there isn't any checks in the code);
• u>0. If u=1, smoothing is not used;
• ul>0. If ul=1, the signal and ergodic lines are the same;
• Min. rates =([max(r,s)]+u+ul-3+1).
