Exp_AbsolutelyNoLagLwma_X2 - expert pour MetaTrader 5

Trend-following trading system Exp_AbsolutelyNoLagLwma_X2 is based on the signals of two indicators AbsolutelyNoLagLwma. The first indicator determines the direction of the slow trend based on the line color. The second indicator determines the moment for opening a trade, when the line color changes. The signal is formed when a bar is closing if two conditions are met:

1. Signals of the fast and slow trend match;
2. Direction of the fast trend has changed.

Input parameters of the Expert Advisor

//+-------------------------------------------------+
//| Input parameters of the EA indicator            |
//+-------------------------------------------------+
sinput string Trade="Trade Management";    //+============== TRADE MANAGEMENT ==============+
input double MM=0.1;               //Share of a deposit in a deal
input MarginMode MMMode=LOT;       //lot size detection method
input uint    StopLoss_=1000;      //Stop Loss in points
input uint    TakeProfit_=2000;    //Take Profit in points
sinput string MustTrade="Trade Permissions";    //+============== TRADE PERMISSIONS ==============+
input int    Deviation_=10;       //Max price deviation in points
input bool   BuyPosOpen=true;     //Permission to enter long positions
input bool   SellPosOpen=true;    //Permission to enter short positions
//+-------------------------------------------------+
//| Input parameters of the filter indicator        |
//+-------------------------------------------------+
sinput string Filter="SLOW TRADE PARAMETERS";    //+============== TRADE PARAMETERS ==============+
input ENUM_TIMEFRAMES TimeFrame=PERIOD_H6;  //1 Chart period for the trend
input uint Length=7;                        // smoothing depth
input Applied_price_ IPC=PRICE_CLOSE_;      // price constant
input uint SignalBar=1;                     // bar number for getting the entry signal
input bool   BuyPosClose=true;              // Permission to close long positions by trend
input bool   SellPosClose=true;             // Permission to close short positions by trend
//+-------------------------------------------------+
//| Input parameters of the entry indicator         |
//+-------------------------------------------------+
sinput string Input="ENTRY PARAMETERS";       //+=============== ENTRY PARAMETERS ===============+
input ENUM_TIMEFRAMES TimeFrame_=PERIOD_M30;  //2 Chart period for entry
input uint Length_=7;                         // smoothing depth
input Applied_price_ IPC_=PRICE_CLOSE_;       // price constant
input uint SignalBar_=1;                      // bar number to get an entry signal
input bool   BuyPosClose_=false;              // Permission to close long positions by signal
input bool   SellPosClose_=false;             // Permission to close short positions by signal
//+-------------------------------------------------+

String parameters with text in the code of input parameters are only for better visualization of the input parametera window of the expert.

Indicators AbsolutelyNoLagLwma_HTF in the EA are only designed for a more convenient visualization of trends in the Strategy Tester; and they do not work in any other modes.

For the generated EA to operate correctly, the compiled files of indicators AbsolutelyNoLagLwma.ex5 and AbsolutelyNoLagLwma_HTF.ex5 must be in the <terminal_data_directory>\MQL5\Indicators folder.

Note that the TradeAlgorithms.mqh library file allows using Expert Advisors with brokers who offer nonzero spread and the option of setting Stop Loss and Take Profit together with position opening. You can download more variants of the library at the following link: Trade Algorithms.

Default Expert Advisor's input parameters have been used during the tests shown below. Stop Loss and Take Profit have not been used during the tests.

Testing results for USDJPY over the year 2016, slow trend on H6, and entry by fast trend on M30:

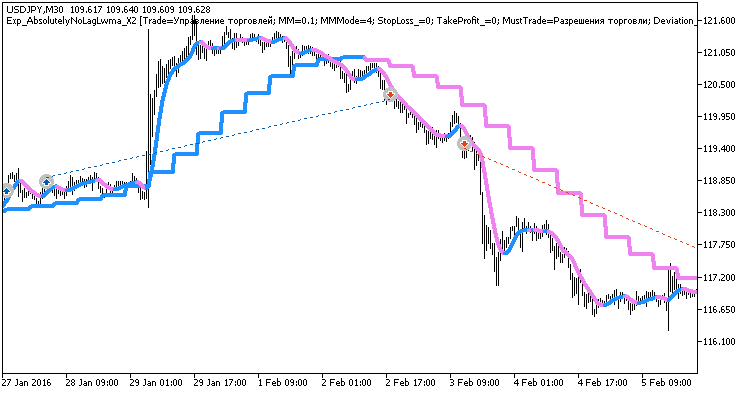

Fig 1. Examples of deals on the chart

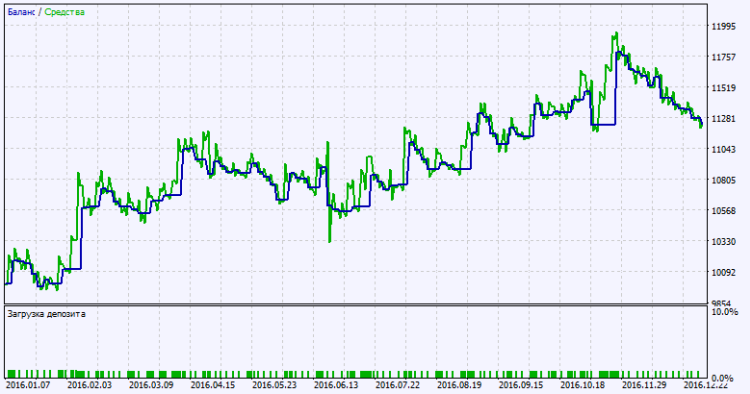

Fig. 2. Testing results chart
