Real author:
RoboFx
The Balance of Power (BOP) indicator as a color histogram of strength and direction of the current trend, which features alerts, sending emails and push-notifications to mobile devices. The histogram is colored according to the values input parameters for overbought and oversold levels and the movement direction of the histogram.
The following changes have been made to the indicator code in order to implement the alerts, email messages and push-notifications:
- Introduced new input parameters
//---- Input variables for alerts input uint NumberofBar=1; //Bar number for the signal input bool SoundON=true; //Enable alerts input uint NumberofAlerts=2; //Number of alerts input bool EMailON=false; //Enable mailing the signal input bool PushON=false; //Enable sending the signal to mobile devices
- Added three new functions to the end of the indicator code: BuySignal(), SellSignal() and GetStringTimeframe()
//+------------------------------------------------------------------+ //| Buy signal function | //+------------------------------------------------------------------+ void BuySignal(string SignalSirname,// text of the indicator name for email and push messages double &ColorArray[],// color index buffer int ColorIndex,// color index in the color index buffer to generate a signal const int Rates_total, // the current number of bars const int Prev_calculated, // the number of bars on the previous tick const double &Close[], // close price const int &Spread[]) // spread { //--- static uint counter=0; if(Rates_total!=Prev_calculated) counter=0; bool BuySignal=false; bool SeriesTest=ArrayGetAsSeries(ColorArray); int index,index1; if(SeriesTest) { index=int(NumberofBar); index1=index+1; } else { index=Rates_total-int(NumberofBar)-1; index1=index-1; } if(ColorArray[index1]!=ColorIndex && ColorArray[index]==ColorIndex) BuySignal=true; if(BuySignal && counter<=NumberofAlerts) { counter++; MqlDateTime tm; TimeToStruct(TimeCurrent(),tm); string text=TimeToString(TimeCurrent(),TIME_DATE)+" "+string(tm.hour)+":"+string(tm.min); SeriesTest=ArrayGetAsSeries(Close); if(SeriesTest) index=int(NumberofBar); else index=Rates_total-int(NumberofBar)-1; double Ask=Close[index]; double Bid=Close[index]; SeriesTest=ArrayGetAsSeries(Spread); if(SeriesTest) index=int(NumberofBar); else index=Rates_total-int(NumberofBar)-1; Bid+=Spread[index]; string sAsk=DoubleToString(Ask,_Digits); string sBid=DoubleToString(Bid,_Digits); string sPeriod=GetStringTimeframe(ChartPeriod()); if(SoundON) Alert("BUY signal \n Ask=",Ask,"\n Bid=",Bid,"\n currtime=",text,"\n Symbol=",Symbol()," Period=",sPeriod); if(EMailON) SendMail(SignalSirname+": BUY signal alert","BUY signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod); if(PushON) SendNotification(SignalSirname+": BUY signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod); } //--- } //+------------------------------------------------------------------+ //| Sell signal function | //+------------------------------------------------------------------+ void SellSignal(string SignalSirname, // text of the indicator name for email and push messages double &ColorArray[], // color index buffer int ColorIndex, // color index in the color index buffer to generate a signal const int Rates_total, // the current number of bars const int Prev_calculated, // the number of bars on the previous tick const double &Close[], // close price const int &Spread[]) // spread { //--- static uint counter=0; if(Rates_total!=Prev_calculated) counter=0; bool SellSignal=false; bool SeriesTest=ArrayGetAsSeries(ColorArray); int index,index1; if(SeriesTest) { index=int(NumberofBar); index1=index+1; } else { index=Rates_total-int(NumberofBar)-1; index1=index-1; } if(ColorArray[index1]!=ColorIndex && ColorArray[index]==ColorIndex) SellSignal=true; if(SellSignal && counter<=NumberofAlerts) { counter++; MqlDateTime tm; TimeToStruct(TimeCurrent(),tm); string text=TimeToString(TimeCurrent(),TIME_DATE)+" "+string(tm.hour)+":"+string(tm.min); SeriesTest=ArrayGetAsSeries(Close); if(SeriesTest) index=int(NumberofBar); else index=Rates_total-int(NumberofBar)-1; double Ask=Close[index]; double Bid=Close[index]; SeriesTest=ArrayGetAsSeries(Spread); if(SeriesTest) index=int(NumberofBar); else index=Rates_total-int(NumberofBar)-1; Bid+=Spread[index]; string sAsk=DoubleToString(Ask,_Digits); string sBid=DoubleToString(Bid,_Digits); string sPeriod=GetStringTimeframe(ChartPeriod()); if(SoundON) Alert("SELL signal \n Ask=",Ask,"\n Bid=",Bid,"\n currtime=",text,"\n Symbol=",Symbol()," Period=",sPeriod); if(EMailON) SendMail(SignalSirname+": SELL signal alert","SELL signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod); if(PushON) SendNotification(SignalSirname+": SELL signal at Ask="+sAsk+", Bid="+sBid+", Date="+text+" Symbol="+Symbol()+" Period="+sPeriod); } //--- } //+------------------------------------------------------------------+ //| Getting the timeframe as a string | //+------------------------------------------------------------------+ string GetStringTimeframe(ENUM_TIMEFRAMES timeframe) { //---- return(StringSubstr(EnumToString(timeframe),7,-1)); //---- }
- Added a couple of calls to BuySignal() and SellSignal() functions after the indicator calculation cycles in the OnCalculate() block
//--- BuySignal("BalanceOfPower_Histogram_Alert",ColorIndBuffer,0,rates_total,prev_calculated,close,spread); SellSignal("BalanceOfPower_Histogram_Alert",ColorIndBuffer,7,rates_total,prev_calculated,close,spread); //---
Where ColorIndBuffer is the name of the color index buffer for storing candle color in the form of an index.
It is assumed that the only one call to the BuySignal() and SellSignal() functions will be used in the OnCalculate() block of the indicator code.
The indicator uses the classes of SmoothAlgorithms.mqh library (copy it to <terminal_data_folder>\MQL5\Include). The use of the classes was thoroughly described in the article "Averaging Price Series for Intermediate Calculations Without Using Additional Buffers".
Originally this indicator has been written in MQL5 and was first published in the Code Base on 07.02.2013.
Fig1. The BalanceOfPower_Histogram_Alert indicator on the chart

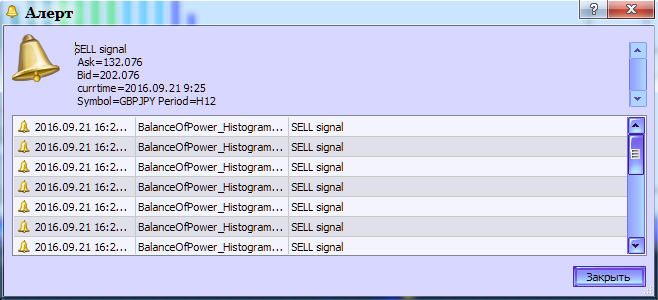

Fig.2. The BalanceOfPower_Histogram_Alert indicator Generating alerts.
Traduit du russe par MetaQuotes Ltd.
Code original : https://www.mql5.com/ru/code/16403
