Description

The CADXOnRingBuffer class is designed for calculation of a technical indicator Average Directional Movement Index (Average Directional Movement Index, ADX) using the algorithm of  the ring buffer.

Declaration

class CADXOnRingBuffer

Title

#include <IncOnRingBuffer\CADXOnRingBuffer.mqh>

File of the CADXOnRingBuffer.mqh class should be placed in the IncOnRingBuffer folder that need to be established in MQL5\Include\. Two files with the examples used by the class from this folder are attached to the description. File with the class of the ring buffer and the class of Moving Average also must be in this folder.

Class methods

//--- initialization method:
bool Init(                                // if error it returns false, if successful - true
   int            ma_period   = 14,       // period of Moving Average smoothing
   ENUM_MA_METHOD ma_method   = MODE_EMA, // method of Moving Average smoothing
   int            size_buffer = 256,      // the size of the ring buffer, the number of stored data
   bool           as_series   = false     // true, if a time series, false if the usual indexing of the input data
   );

//--- method of calculation based on a time series or indicator buffers:
int MainOnArray(                  // returns the number of processed elements
   const int     rates_total,     // the size of the arrays
   const int     prev_calculated, // processed elements on the previous call
   const double &high[]           // the maximum value array
   const double &low[]            // the minimum value array
   const double &close[]          // close price array
   );

//--- method for calculation based on the separate series elements of the array
double MainOnValue(              // returns the ADX value for the set element
   const int    rates_total,     // the size of the array
   const int    prev_calculated, // processed elements of the array
   const int    begin,           // from where the significant values of the array start
   const double high,            // the maximum value
   const double low,             // the minimum value
   const double close,           // close price
   const int    index            // the element index
   );

//--- methods of access to the data:
int    BarsRequired();   // Returns necessary number of bars to draw the indicator
string NameADX();        // Returns the name of the indicator
string NameNDI();        // Returns the name of the negative directional movement indicator line
string NamePDI();        // Returns the name of the positive directional movement indicator line
string MAMethod();       // Returns the method of smoothing in the form of the text line
int    MAPeriod();       // Returns the period of smoothing
int    Size();           // Returns the size of the ring buffer

To get the calculated data of the indicator from the ring buffer is possible as from the usual array. For example:

#include <IncOnRingBuffer\CADXOnRingBuffer.mqh>
CADXOnRingBuffer adx;

...

//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,
                const int prev_calculated,
                const datetime& time[],
                const double& open[],
                const double& high[],
                const double& low[],
                const double& close[],
                const long& tick_volume[],
                const long& volume[],
                const int& spread[])
  {
//--- calculation of the indicator:
   adx.MainOnArray(rates_total,prev_calculated,high,low,close);

   ...

//--- copy the data from the "adx" ring buffers to the indicator:
   for(int i=start;i<rates_total;i++)
     {
      ADX_Buffer[i]=adx[rates_total-1-i];      // average directional movement index
      PDI_Buffer[i]=adx.pdi[rates_total-1-i];  // positive directional index
      NDI_Buffer[i]=adx.ndi[rates_total-1-i];  // negative directional index
     }

   ...
  }

Examples

1. The Test_ADX_OnArrayRB.mq5 file calculates the indicator on the basis of the price time series. The MainOnArray() method application is demonstrated
2. The Test_ADX_OnValueRB.mq5 file demonstrates the use of the MainOnValue() method. At first the ADX indicator is calculated and drawn. Then on the basis of the ring buffer of this indicator, three lines of the ADX indicator are calculated.

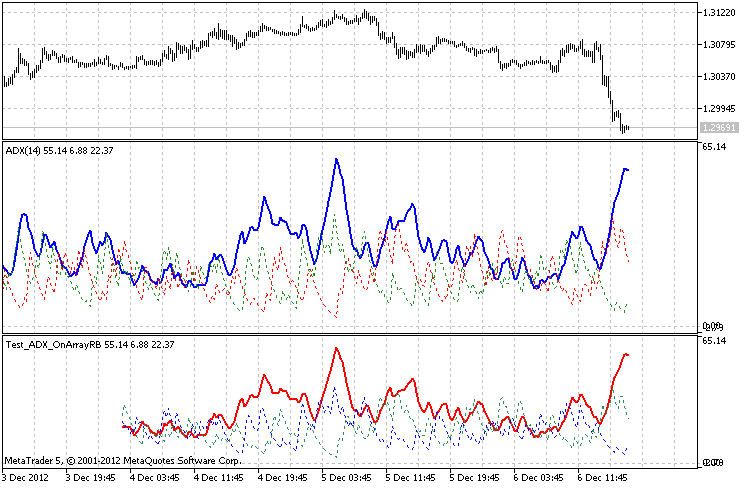

The result of the work of the Test_ADX_OnArrayRB.mq5 with the size of the ring buffer of 256 elements

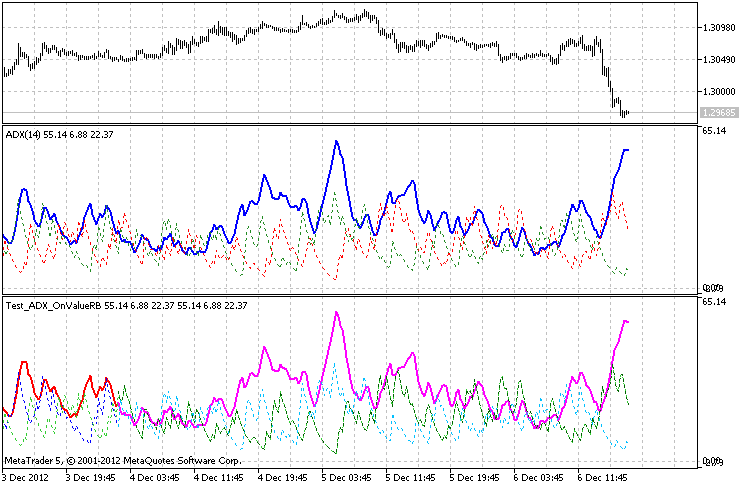

The result of the work of the Test_ADX_OnValueRB.mq5 with the size of the ring buffer of 256 elements

When writing code the developments of MetaQuotes Software Corp., Integer and GODZILLA were used.
