3D_Oscillator_HTF_Signal - indicatore per MetaTrader 5

3D_Oscillator_Signal shows a trend direction or a signal for performing a deal generated by 3D_Oscillator as text messages with a trend color indication or deal direction and gives alerts or audio signals.

If necessary, the text messages can be changed by altering the values of the appropriate constants in the indicator code:

#define SIGNAL_SYMBOLS_FONT "Georgia"    // Market entry symbol font
#define TREND_SYMBOLS_FONT  "Georgia"    // Trend symbol font
#define UP_SIGNAL_SYMBOL    "Buy 3D"     // Long position opening symbol
#define DN_SIGNAL_SYMBOL    "Sell 3D"    // Short position opening symbol
#define UP_TREND_SYMBOL     "3D"         // Uptrend symbol
#define DN_TREND_SYMBOL     "3D"         // Downtrend symbol

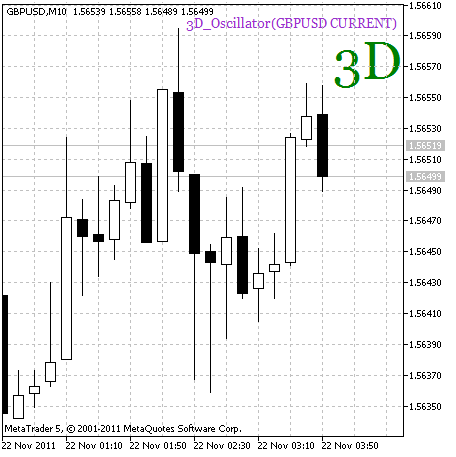

In case a trend continues at the selected bar, the indicator alerts by a graphic object in the form of a star, the color of which corresponds to a trend direction. In case a trend has changed at the selected bar, the indicator alerts by the arrow, color and direction of which correspond to a performed deal direction.

All input parameters can be divided into three large groups:

1. 3D_Oscillator indicator input parameters:

   //+------------------------------------------------+
   //|  Indicator input parameters                    |
   //+------------------------------------------------+
   input string Symbol_="";                  // Financial instrument
   input ENUM_TIMEFRAMES Timeframe=PERIOD_H6;// Timeframe for the indicator calculation
   input int D1RSIPer=13;
   input int D2StochPer=8;
   input int D3tunnelPer=8;
   input double hot=0.4;
   input int sigsmooth=4;

2. 3D_Oscillator_HTF_Signal indicator input parameters that are necessary for the indicator visualization:


   //---- indicator display settings
   input uint SignalBar=0;                               // Signal bar index, 0 is a current bar
   input string Symbols_Sirname=INDICATOR_NAME"_Label_"; // Indicator labels name
   input color BuySymbol_Color=Lime;                     // Growth symbol color
   input color UpSymbol_Color=Green;                     // Growth symbol color
   input color DnSymbol_Color=Red;                       // Downfall symbol color
   input color SellSymbol_Color=Magenta;                 // Downfall symbol color
   input color IndName_Color=DarkOrchid;                 // Indicator name color
   input uint Symbols_Size=40;                           // Signal symbols size
   input uint Font_Size=10;                              // Indicator name font size
   input int X_1=5;                                      // Horizontal shift of the name
   input int Y_1=-15;                                    // Vertical shift of the name
   input bool ShowIndName=true;                          // Indicator name display
   input ENUM_BASE_CORNER  WhatCorner=CORNER_RIGHT_UPPER;// Location corner
   input uint X_=0;                                      // Horizontal shift
   input uint Y_=20;                                     // Vertical shift

3. 3D_Oscillator_HTF_Signal indicator input parameters that are necessary for triggering alerts and audio signals:


   //---- alerts settings
   input ENUM_ALERT_MODE alert_mode=OnlySound; // Actuation indication version
   input uint AlertCount=0// Number of submitted alerts

In case several 3D_Oscillator_HTF_Signal indicators are to be used on one chart, each of them should have its own Symbols_Sirname (indicators labels names) string variable value.

Place the 3D_Oscillator indicator compiled file to the terminal_data_folder\MQL5\Indicators.
