DeMarker_Histogram_Vol - indicatore per MetaTrader 5

DeMarker oscillator displayed as a color histogram, using volumes.

Calculation formula:

DeMarker Histogram Vol = (100 * DeMarker - 50) * Volume

For quite understandable reasons, the recalculation of overbought and oversold levels in such a modified oscillator should be performed using the same formula. In the final version, these levels are no longer permanent. Two levels with the appropriate breakout indication were used.

input int                 HighLevel2=+20;           // overbought level 2
input int                 HighLevel1=+15;           // overbought level 1
input int                 LowLevel1=-15;            // oversold level 1
input int                 LowLevel2=-20;            // oversold level 2

In the indicator input parameters, these levels are additionally multiplied by 100 and shifted by the levels of 50 of the source DeMarker, and then multiplied by volumes at each indicator tick.

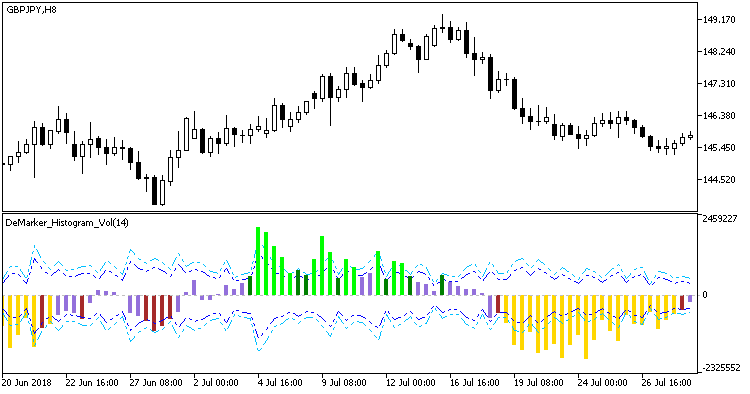

Fig. 1. DeMarker_Histogram_Vol
